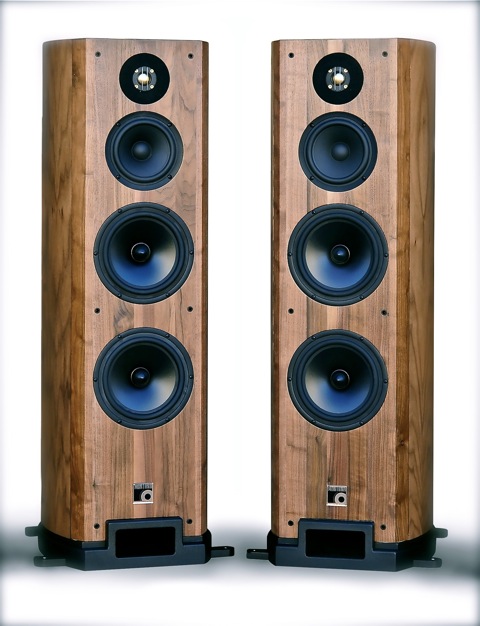

The MONTANA Liberty
The Compact World Reference
The MONTANA Liberty is the ultimate loudspeaker for those who are looking for maximum musical realism in a compact, interior friendly cabinet.
The Liberty offers a non-compromise loudspeaker design in terms of engineering, the new, innovative cabinet platform and choice of components. The LIberty truly is a synergestic whole. The cabinet is superior to other cabinet designs due to the elimination of cabinet resonances. All you will hear from the Liberty is the purest, most defined and extended sound that is currently available at the price. It easily equals bigger and way more expensive loudspeakers in terms of sheer performance.
PBN Audio had one ambition with the MONTANA Liberty: To set a new performance standard for compact floorstanding loudspeakers. Please contact HighEnd for a demonstration and put the manufacturer´s bold ambition to the test!
Specifications
Hight: 123 cm
With: 36 cm
Depth: 45 cm
Weight: 65 kg/ea
2 each 8 " Aluminum Cone Woofers by Seas
1 each 6" Reed paper cone midrange By SB Acoustics
1 each 1" Gold-plated Titanium Tweeter with Neo Magnets by Audax
Filter is 24dB Octave (acoustical). High-pass, band-pass and Low-pass filters all have impedance correction networks to insure perfect dome/cone behavior at their resonance frequencies, the tweeter crossover even have a special impedance correction filter to handle the inherent 25kHz dome break up in all metal dome tweeters.
Crossover frequencies are 220Hz and 2100Hz
Sensitivity is 90dB / 2.83V / 1M
Frequency Range is;
40Hz / 35kHz +/- 1.5 dB
25Hz / 35kHz -6dB / +1.5dB
Impedance is 4 ohms nominal (2.5 Ohm to 8 Ohm)
Power handling is 300W RMS
Minimum Power amp is 25W
Internal wire is by Canare 411S

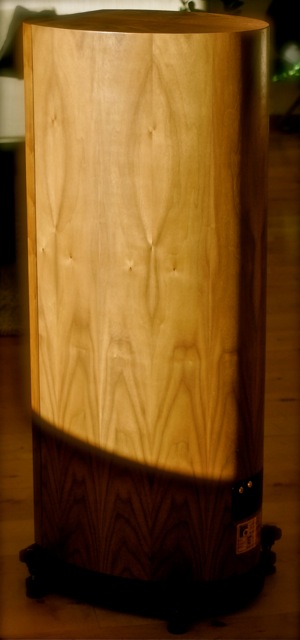

Finish: A huge variety of exclusive realwood veneers (custom order).
|
|
|
|
